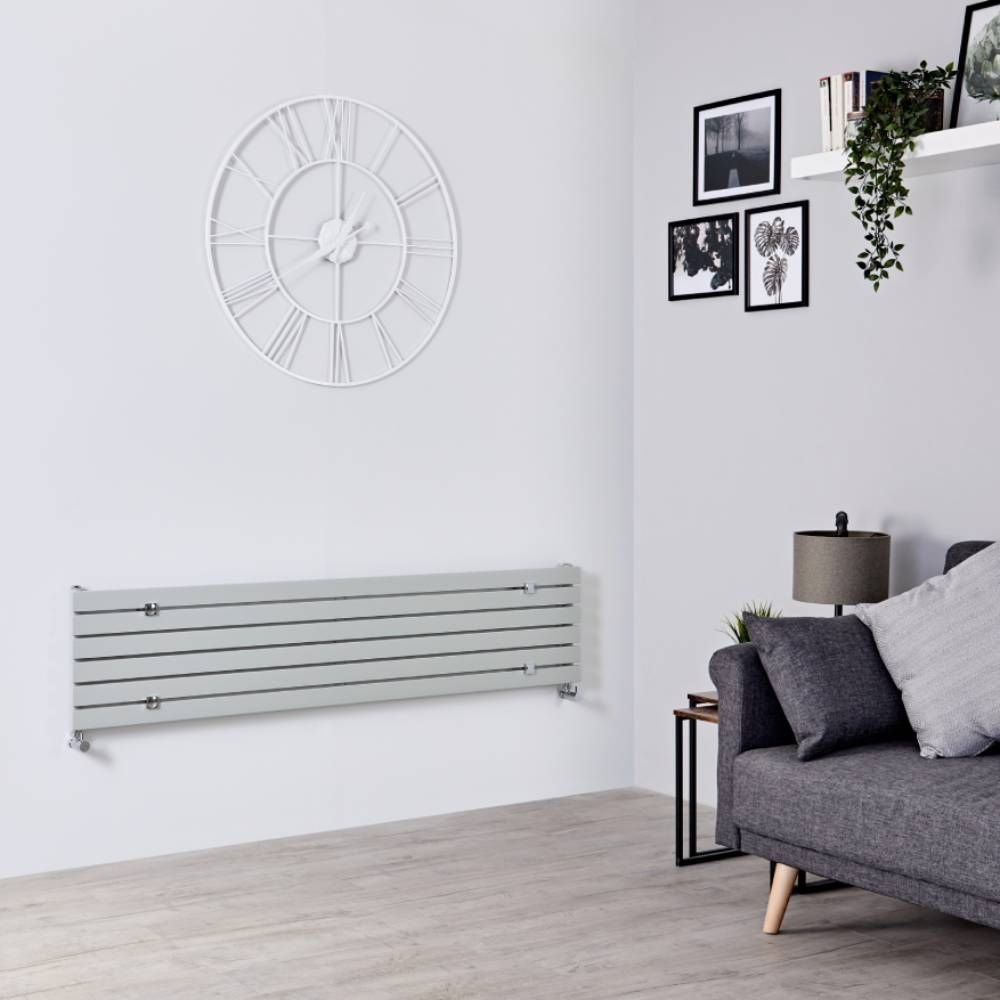

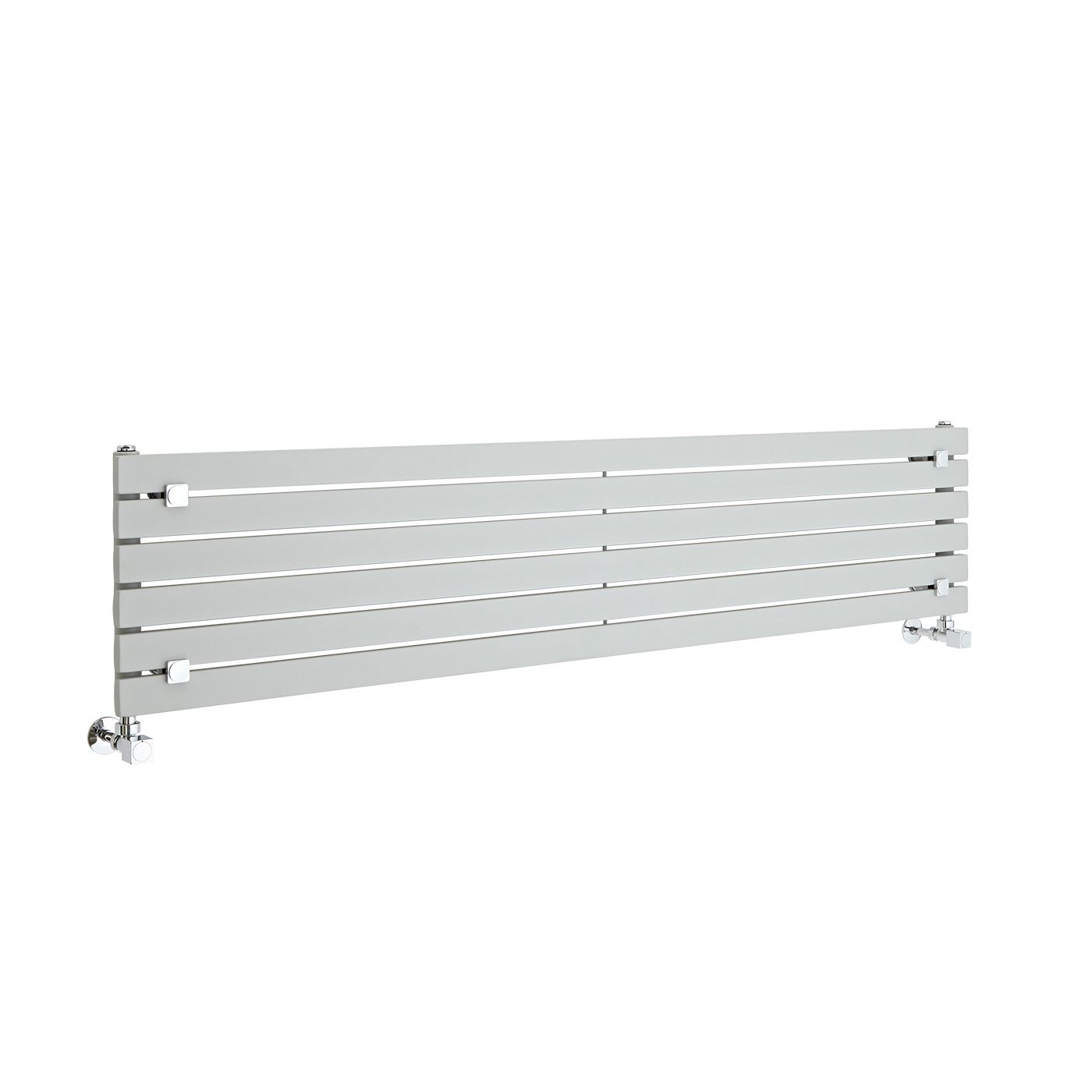

Milano Capri - Silver Flat Panel Horizontal Flat Panel Designer Radiator - 354mm x 1600mm (Single Panel)
The Milano Capri 354mm x 1600mm silver designer radiator combines contemporary looks with functionality. Featuring a silver finish to enhance any decor and flat panels for a minimalistic look, this high quality designer radiator is a great option for adding chic and sophisticated style to any room in your home. Suitable for all central heating systems, the Capri designer radiator produces an excellent heat output to ensure your room is quickly transformed into a space that feels warm and welcoming. The designer radiator has a steel construction so you can be assured of superior quality and durability.
Capri Designer Radiator Features:
- Dimensions: 354mm x 1600mm x 53mm
- 2122 BTUs (622 Watts)
- High quality silver powder coated finish
- Features 6 single panels
- Made from 1.5mm thick steel for guaranteed durability
- This radiator is supplied with extra brackets for horizontal installation
- Tested and certified: BS EN 442 standards
- ISO 9001:2015 registered manufacturer
- CE marked

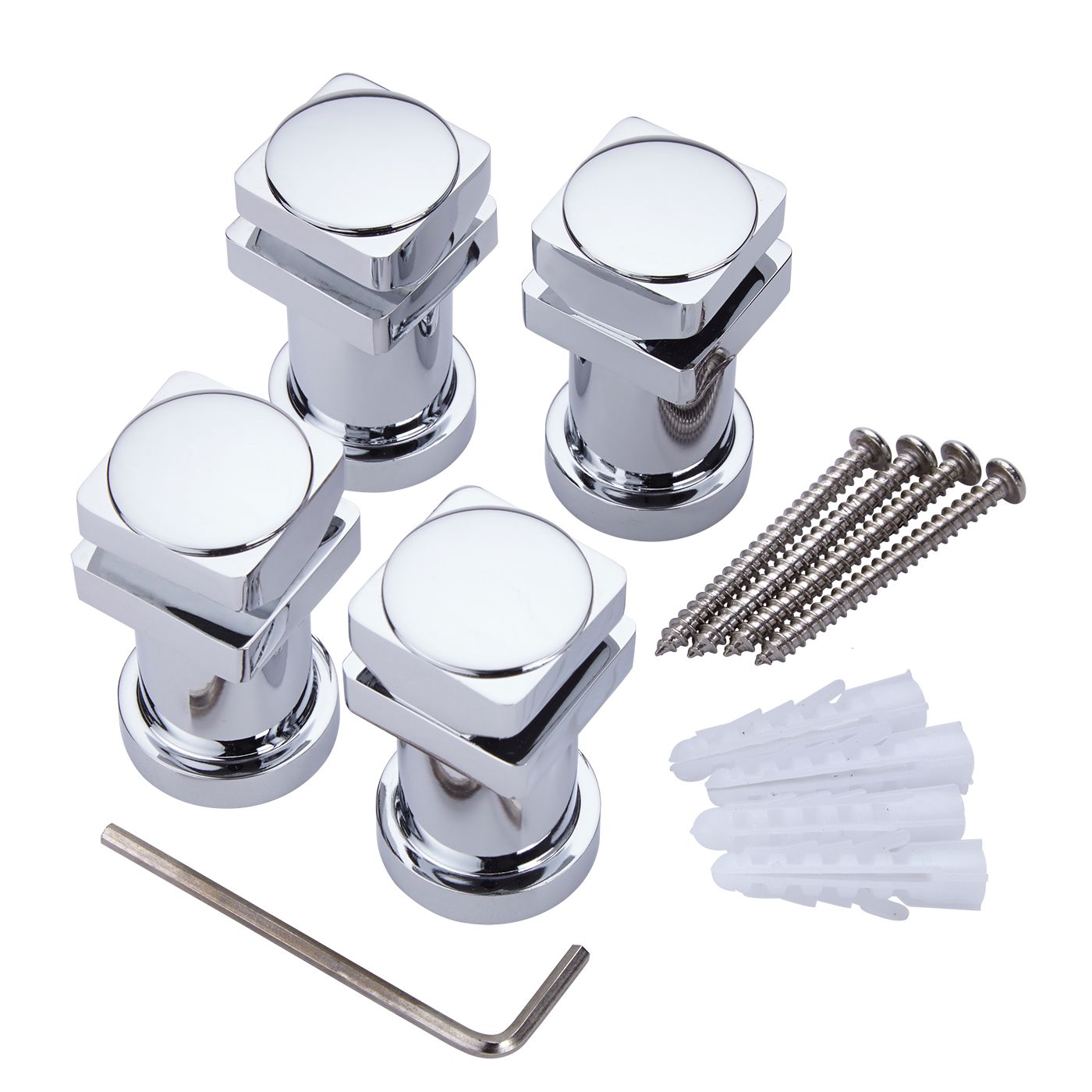

What's Included?
- Wall fixings
- Wall plugs
- Blanking and bleed plug
Please Note: This product will arrive marked as a vertical installation and horizontal mounting brackets will be supplied separately.
Please note: this radiator is not suitable for use with feet.
Please note: whilst we do display measurements on the line drawings, due to the manufacturing process, there can be tolerances within them. We strongly advise not to drill any fixing holes for the brackets or locate any pipework until you have received your radiator and valves are fitted.
This product will arrive marked as a vertical installation and horizontal brackets will be supplied separately.
Style | |
---|---|
Range | Capri |
Style | Modern |
Finish | Silver |
Specifications | |
---|---|
Width (mm) | 1,600 |
Height (mm) | 354 |
Depth (mm) | 53 |
Projection (mm) | 68 |
Floor to Centre of Tapping (mm) An important measurement used for radiators and towel rails, indicating the distance from the floor to the centre of the pipe connections.
| Min. 300 |
Wall to Centre Tapping (mm) Wall to centre tapping refers to the distance between the wall to the pipe inlets at the point they enter the radiator valves. To get this measurement, you will need to measure from the centre of the pipe inlet to the wall.
| 26 |
Pipe Centres (mm) Pipe centres refers to the distance needed between the two central heating pipes that connect to the valves - this is an approximate measurement and can differ slightly depending on the valves used.
| 1555 (approx.) |
Watts at Delta T30 | 338 |
Watts at Delta T50 | 622 |
BTU at Delta T30 | 1153 |
BTU at Delta T50 | 2122 |
Inlet Connection | 1/2'' |
Volume (litres) | 7.26 |
Product Weight (kg) | 17.3 |
Features | |
---|---|
Material | Steel |
Installation Type Refers to how a product is fitted or installed in your home. It could be plumbed into your central heating system, hard wired into your electrics or plugged into a standard socket. It can also be a combination of these known as dual fuel.
| Hot Water |
Maximum Water Pressure | 10 Bar |
Guarantee | |
---|---|
GuaranteeLearn More | 20 Years |
Certification An official document that proves a product meets established standards for quality, safety, and performance, ensuring it's fit for use.
| EN442 |
