The Milano Compact 600mm x 1200mm double panel radiator boasts an impressive BTU heat output to ensure your room is quickly and effectively transformed into a warm and inviting space. Made from steel to ensure long lasting durability, this radiator features a high quality white finish that blends in easily with any decor.
Compatible with all central heating systems, this radiator is sure to add smart, modern style to any room in your home.
The radiator is constructed from two panels and two convectors.
Compact Convector Radiator Features:

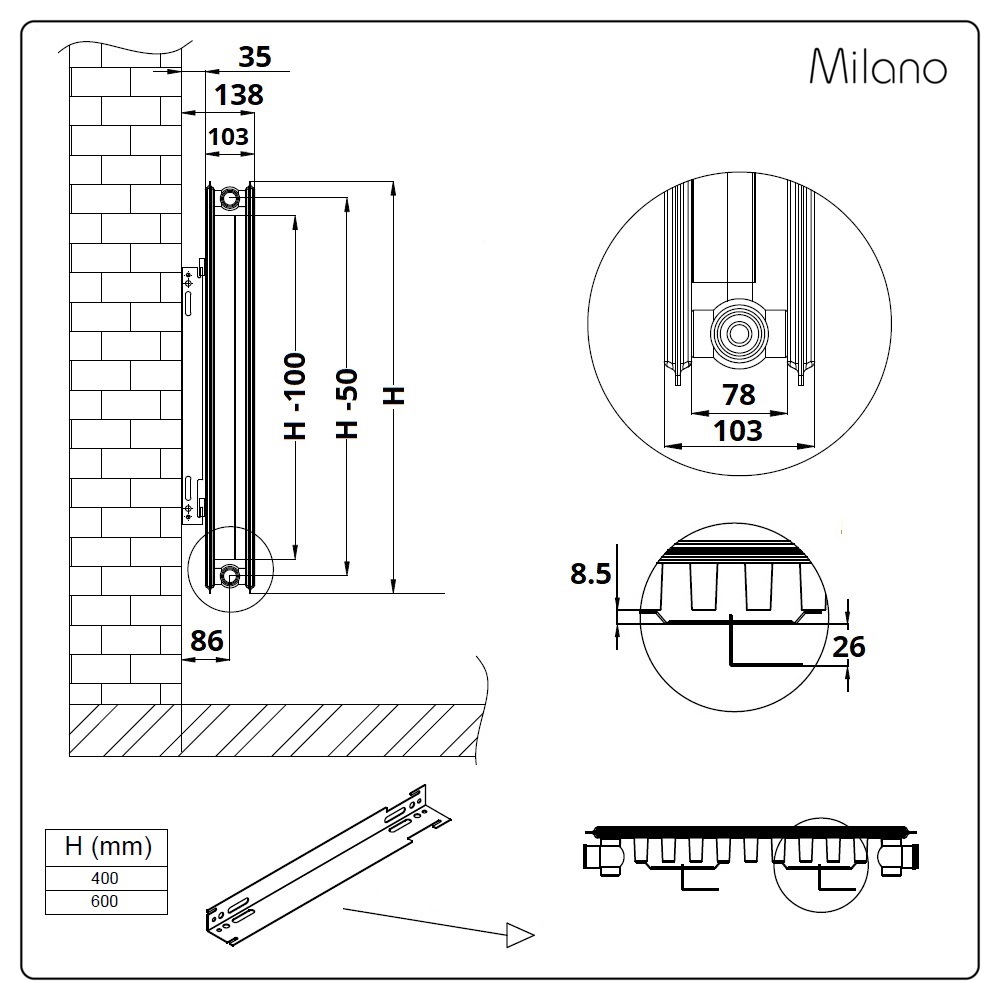

- Dimensions: 600mm x 1200mm x 103mm
- 6812 BTUs (1996 Watts)
- High quality white powder coated finish
- Made from premium quality steel
- Tested and certified: BS EN 442 standards
- ISO 9001:2015 registered manufacturer
- CE marked
What's Included?
- Wall fixings
- Wall plugs
- Blanking and bleed plug
Valves not included - Which Valves do I need?
| Style | |
|---|---|
| Range | Compact |
| Style | Modern |
| Finish | White |
| RAL Code A colour matching system used to accurately match colours for paints, finishes, and coatings. Each RAL code represents a specific shade, ensuring consistency across products.
| 9016 |
| Specifications | |
|---|---|
| Width (mm) | 1,200 |
| Height (mm) | 600 |
| Depth (mm) | 103 |
| Projection (mm) | 126/139 |
| Floor to Centre of Tapping (mm) An important measurement used for radiators and towel rails, indicating the distance from the floor to the centre of the pipe connections.
| Min. 300 |
| Wall to Centre Tapping (mm) Wall to centre tapping refers to the distance between the wall to the pipe inlets at the point they enter the radiator valves. To get this measurement, you will need to measure from the centre of the pipe inlet to the wall.
| 74.5(87.5) |
| Pipe Centres (mm) Pipe centres refers to the distance needed between the two central heating pipes that connect to the valves - this is an approximate measurement and can differ slightly depending on the valves used.
| 1290 (approx.) |
| Watts at Delta T30 | 1019 |
| Watts at Delta T50 | 1996 |
| BTU at Delta T30 | 3477 |
| BTU at Delta T50 | 6812 |
| Inlet Connection | 1/2'' |
| Volume (litres) | 7.2 |
| Product Weight (kg) | 36.76 |
| Features | |
|---|---|
| Material | Steel |
| Installation Type Refers to how a product is fitted or installed in your home. It could be plumbed into your central heating system, hard wired into your electrics or plugged into a standard socket. It can also be a combination of these known as dual fuel.
| Hot Water |
| Fitting | Wall Mounted |
| Maximum Water Pressure | 10 bar |
| Guarantee | |
|---|---|
| GuaranteeLearn More | 10 Years |
| Certification An official document that proves a product meets established standards for quality, safety, and performance, ensuring it's fit for use.
| EN442 |
