Milano Capri - White Flat Panel Horizontal Designer Radiator - 635mm x 1000mm (Double Panel)
SKU
DRWFPH255

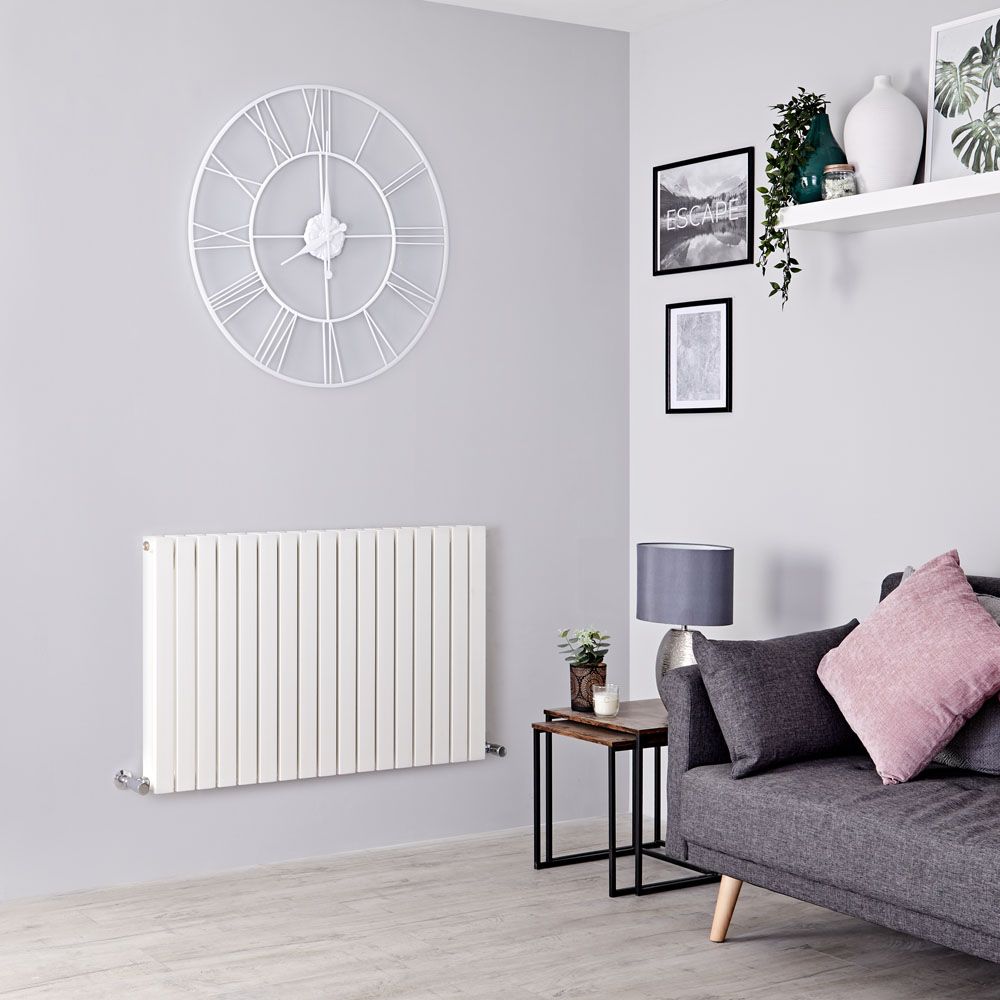

The Milano Capri horizontal flat panel designer radiator is an ideal alternative to standard convector radiators as a means of heating any room in the home.
This 635mm x 1000mm model features two rows with seventeen panels on each that have been given a white powder coat finish which is smart, elegant and timeless and will coordinate with rooms of any colour.
The Capri designer radiator has been made using premium quality materials, which gives you a radiator that will look and perform like new for years to come. It produces a superb hourly heat output to ensure your room is quickly transformed into a warm, welcoming and cosy space.
Capri Designer Radiator Features:
- Dimensions: 635mm x 1000mm x 72mm
- 4265 BTUs (1250 Watts)
- High quality white powder coated finish
- Features 17 double panels
- Made from 1.5mm thick steel for guaranteed durability
- Tested and certified: BS EN 442 standards
- ISO 9001:2015 registered manufacturer
- CE marked
What's Included?
- Wall fixings
- Wall plugs
- Blanking and bleed plug
Please note: whilst we do display measurements on the line drawings, due to the manufacturing process, there can be tolerances within them. We strongly advise not to drill any fixing holes for the brackets or locate any pipework until you have received your radiator and valves are fitted.
Valves not included - Which Valves do I need?
| Style | |
|---|---|
| Range | Capri |
| Style | Modern |
| Finish | White |
| RAL Code A colour matching system used to accurately match colours for paints, finishes, and coatings. Each RAL code represents a specific shade, ensuring consistency across products.
| 9016 |
| Specifications | |
|---|---|
| Width (mm) | 1,000 |
| Height (mm) | 635 |
| Depth (mm) | 72 |
| Projection (mm) | 101 |
| Floor to Centre of Tapping (mm) An important measurement used for radiators and towel rails, indicating the distance from the floor to the centre of the pipe connections.
| Min. 300 |
| Wall to Centre Tapping (mm) | 65 |
| Pipe Centres (mm) | 1090 (approx.) |
| Watts at Delta T30 | 640 |
| Watts at Delta T50 | 1250 |
| BTU at Delta T30 | 2185 |
| BTU at Delta T50 | 4265 |
| Inlet Connection This is the diameter of the pipe that connects your product to the water supply in your home.
| 1/2'' |
| Volume (litres) | 18.02 |
| Product Weight (kg) | 37.52 |
| Features | |
|---|---|
| Material | Steel |
| Installation Type Refers to how a product is fitted or installed in your home. It could be plumbed into your central heating system, hard wired into your electrics or plugged into a standard socket. It can also be a combination of these known as dual fuel.
| Hot Water |
| Maximum Water Pressure | 10 Bar |
| Guarantee | |
|---|---|
| GuaranteeLearn More | 20 Years |
| Certification An official document that proves a product meets established standards for quality, safety, and performance, ensuring it's fit for use.
| EN442 |
