Milano Capri - White Flat Panel Horizontal Designer Radiator - 354mm x 1780mm (Single Panel)
SKU
TDRWFP1B

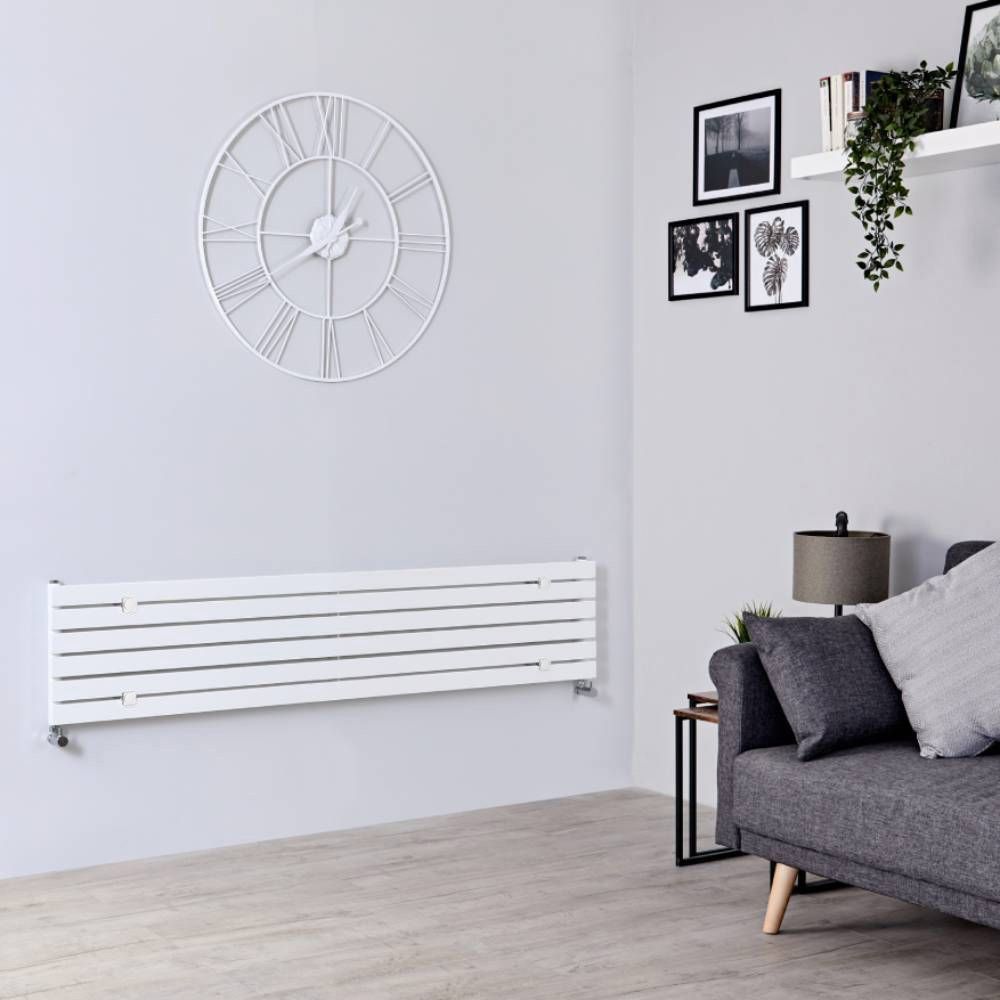

This Capri horizontal flat panel radiator by Milano is an elegant radiator with a high heat output and versatile white finish which can be used anywhere in the home to create an inviting atmosphere and pleasant room temperature This 354mm x 1780mm model is supplied with brackets, in a matching white powder coat finish, ready for wall-mounting.
Producing a superb hourly heat output, the Capri designer radiator has been made using premium quality materials, giving you a radiator that will look and perform like new for years to come.
Capri Designer Radiator Features:
- Dimensions: 354mm x 1780mm x 53mm
- 3058 BTU’s (896 Watts)
- High quality white powder coated finish
- Features 8 single panels
- Made from 1.5mm thick steel for guaranteed durability
- Tested and certified: BS EN 442 standards
- ISO 9001:2015 registered manufacturer
- CE marked
What's Included?
- Wall fixings
- Wall plugs
- Blanking and bleed plug
Please note: this radiator is not suitable for use with feet.
Please note: whilst we do display measurements on the line drawings, due to the manufacturing process, there can be tolerances within them. We strongly advise not to drill any fixing holes for the brackets or locate any pipework until you have received your radiator and valves are fitted.
This product will arrive marked as a vertical installation and horizontal brackets will be supplied separately.
Valves not included - Which Valves do I need?
| Style | |
|---|---|
| Range | Capri |
| Style | Modern |
| Finish | White |
| RAL Code | 9016 |
| Specifications | |
|---|---|
| Width (mm) | 1,780 |
| Height (mm) | 354 |
| Depth (mm) | 53 |
| Projection (mm) | 68 |
| Floor to Centre of Tapping (mm) | Min. 300 |
| Wall to Centre Tapping (mm) | 26 |
| Pipe Centres (mm) | 1735 (approx.) |
| Watts at Delta T30 | 383 |
| Watts at Delta T50 | 671 |
| Watts at Delta T65 | 896 |
| BTU at Delta T30 | 1307 |
| BTU at Delta T50 | 2290 |
| BTU at Delta T65 | 3058 |
| Inlet Connection | 1/2'' |
| Volume (litres) | 8.28 |
| Product Weight (kg) | 18.5 |
| Features | |
|---|---|
| Material | Steel |
| Installation Type | Hot Water |
| Maximum Water Pressure | 10 Bar |
| Guarantee | |
|---|---|
| Guarantee | 20 Years |
| Certification | CE, EN442 |
