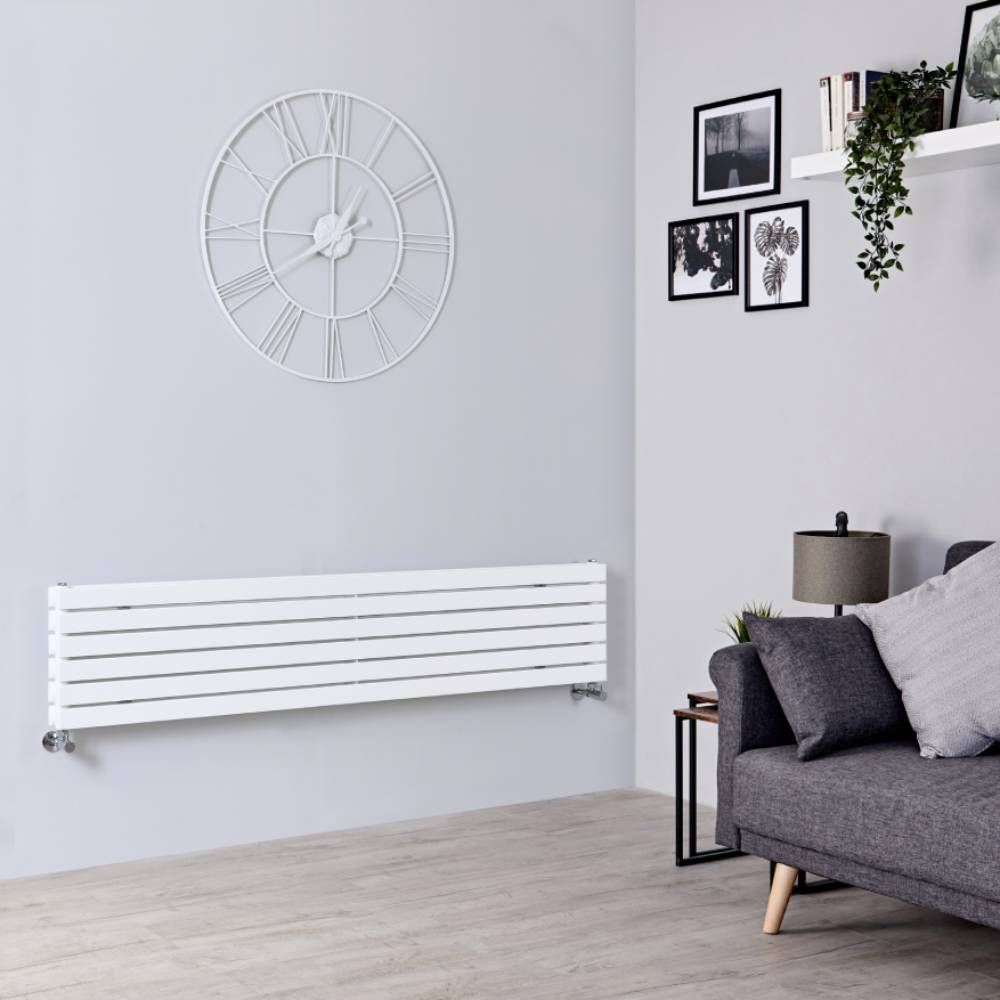

Milano Capri - White Flat Panel Horizontal Designer Radiator - 354mm x 1780mm (Double Panel)
SKU
TDRWFP2B
With the Milano Capri double panel horizontal radiator you can enjoy a simple but stylish flat panel radiator and an outstanding level of warmth and comfort, anywhere in your home. This radiator is elegant but also contemporary, thanks to a minimalist, understated design and a hard-wearing white powder coated finish, which is a delightful finishing touch that allows the radiator to be used in any setting and colour scheme.
The Capri designer radiator has been made using premium quality materials, so you can be assured of a radiator that will look and perform like new for years to come.
Capri Designer Radiator Features:
- Dimensions: 354mm x 1780mm x 71mm
- 3910 BTUs (1146 Watts)
- High quality white powder coated finish
- Features 6 double panels
- Made from 1.5mm thick steel for guaranteed durability
- This radiator is supplied with extra brackets for horizontal installation
- Tested and certified: BS EN 442 standards
- ISO 9001:2015 registered manufacturer
- CE marked
What's Included?
- Wall fixings
- Wall plugs
- Blanking and bleed plug
Please note: this radiator is not suitable for use with feet.
Please note: whilst we do display measurements on the line drawings, due to the manufacturing process, there can be tolerances within them. We strongly advise not to drill any fixing holes for the brackets or locate any pipework until you have received your radiator and valves are fitted.
This product will arrive marked as a vertical installation and horizontal brackets will be supplied separately.
This product will arrive marked as a vertical installation and horizontal brackets will be supplied separately.
Valves not included - Which Valves do I need?
| Style | |
|---|---|
| Range | Capri |
| Style | Modern |
| Finish | White |
| RAL Code A colour matching system used to accurately match colours for paints, finishes, and coatings. Each RAL code represents a specific shade, ensuring consistency across products.
| 9016 |
| Specifications | |
|---|---|
| Width (mm) | 1,780 |
| Height (mm) | 354 |
| Depth (mm) | 72 |
| Projection (mm) | 122 |
| Floor to Centre of Tapping (mm) An important measurement used for radiators and towel rails, indicating the distance from the floor to the centre of the pipe connections.
| Min. 300 |
| Wall to Centre Tapping (mm) Wall to centre tapping refers to the distance between the wall to the pipe inlets at the point they enter the radiator valves. To get this measurement, you will need to measure from the centre of the pipe inlet to the wall.
| 80 |
| Pipe Centres (mm) Pipe centres refers to the distance needed between the two central heating pipes that connect to the valves - this is an approximate measurement and can differ slightly depending on the valves used.
| 1735 (approx.) |
| Watts at Delta T30 | 620 |
| Watts at Delta T50 | 1146 |
| BTU at Delta T30 | 2116 |
| BTU at Delta T50 | 3910 |
| Inlet Connection | 1/2'' |
| Volume (litres) | 15.78 |
| Product Weight (kg) | 35 |
| Features | |
|---|---|
| Material | Steel |
| Installation Type Refers to how a product is fitted or installed in your home. It could be plumbed into your central heating system, hard wired into your electrics or plugged into a standard socket. It can also be a combination of these known as dual fuel.
| Hot Water |
| Maximum Water Pressure | 10 Bar |
| Guarantee | |
|---|---|
| GuaranteeLearn More | 20 Years |
| Certification An official document that proves a product meets established standards for quality, safety, and performance, ensuring it's fit for use.
| EN442 |
