Milano Capri - Anthracite Flat Panel Horizontal Designer Radiator - 472mm x 1780mm (Double Panel)
SKU
TDRAFP28B

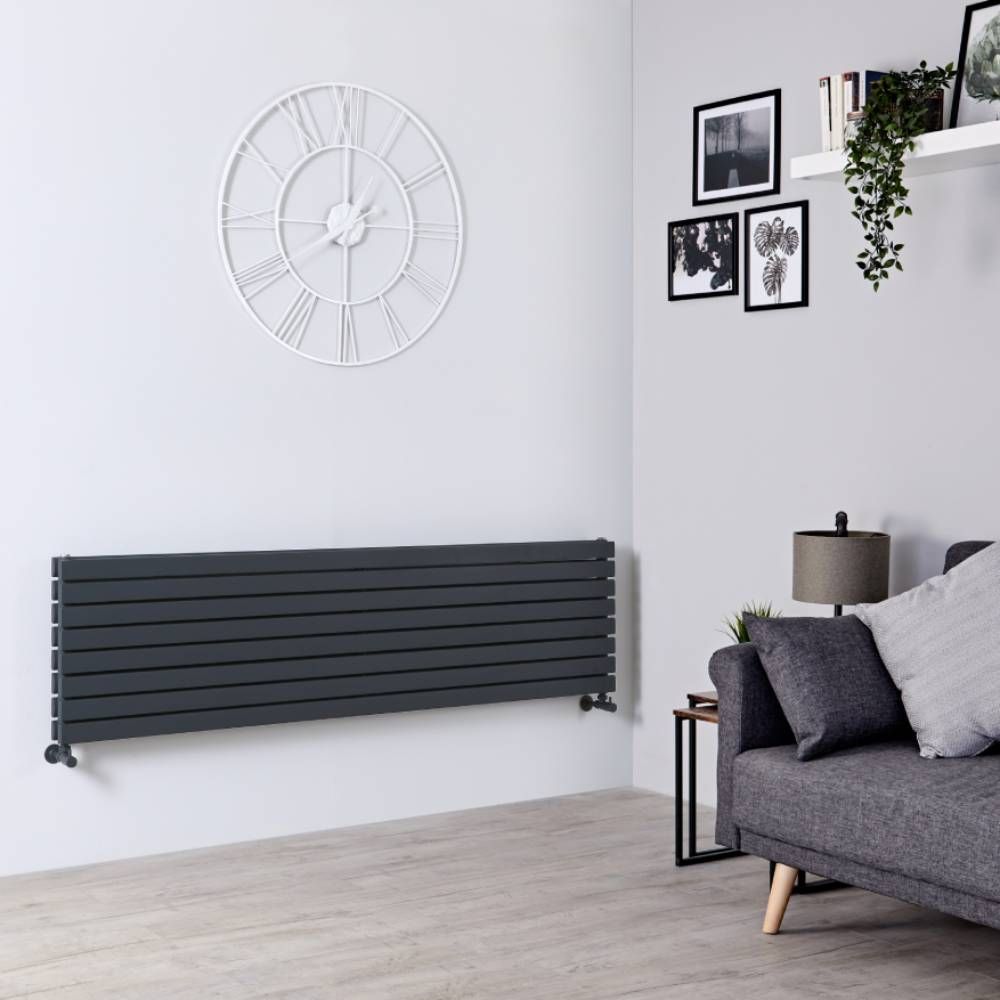

For exceptional warmth and impeccable style, the Capri horizontal radiator by Milano cannot be outdone. This sleek radiator has a flat double panel arrangement which is aesthetically pleasing and also very efficient at heating your home to a cosy and comfortable level, due to its impressive heat output.
Featuring a hard-wearing anthracite powder coated finish, the Capri designer radiator has been made using premium quality materials, which gives you a radiator that will look and perform like new for years to come.
Capri Designer Radiator Features:
- Dimensions: 472mm x 1780mm x 72mm
- 6917 BTU’s (2027 Watts)
- High quality anthracite powder coated finish
- Features 8 double panels
- Made from 1.5mm thick steel for guaranteed durability
- Tested and certified: BS EN 442 standards
- ISO 9001:2015 registered manufacturer
- CE marked
What's Included?
- Wall fixings
- Wall plugs
- Blanking and bleed plug
Please note: this radiator is not suitable for use with feet.
Please note: whilst we do display measurements on the line drawings, due to the manufacturing process, there can be tolerances within them. We strongly advise not to drill any fixing holes for the brackets or locate any pipework until you have received your radiator and valves are fitted.
This product will arrive marked as a vertical installation and horizontal brackets will be supplied separately.
Valves not included - Which Valves do I need?
| Style | |
|---|---|
| Range | Capri |
| Style | Modern |
| Finish | Anthracite |
| RAL Code | 7016 |
| Specifications | |
|---|---|
| Width (mm) | 1,780 |
| Height (mm) | 472 |
| Depth (mm) | 72 |
| Projection (mm) | 122 |
| Floor to Centre of Tapping (mm) | Min. 300 |
| Wall to Centre Tapping (mm) | 80 |
| Pipe Centres (mm) | 1735 (approx.) |
| Watts at Delta T30 | 802 |
| Watts at Delta T50 | 1480 |
| Watts at Delta T65 | 2027 |
| BTU at Delta T30 | 2737 |
| BTU at Delta T50 | 5050 |
| BTU at Delta T65 | 6917 |
| Inlet Connection | 1/2'' |
| Volume (litres) | 21.04 |
| Product Weight (kg) | 45 |
| Features | |
|---|---|
| Material | Steel |
| Installation Type | Hot Water |
| Maximum Water Pressure | 10 Bar |
| Guarantee | |
|---|---|
| Guarantee | 20 Years |
| Certification | CE, EN442 |
