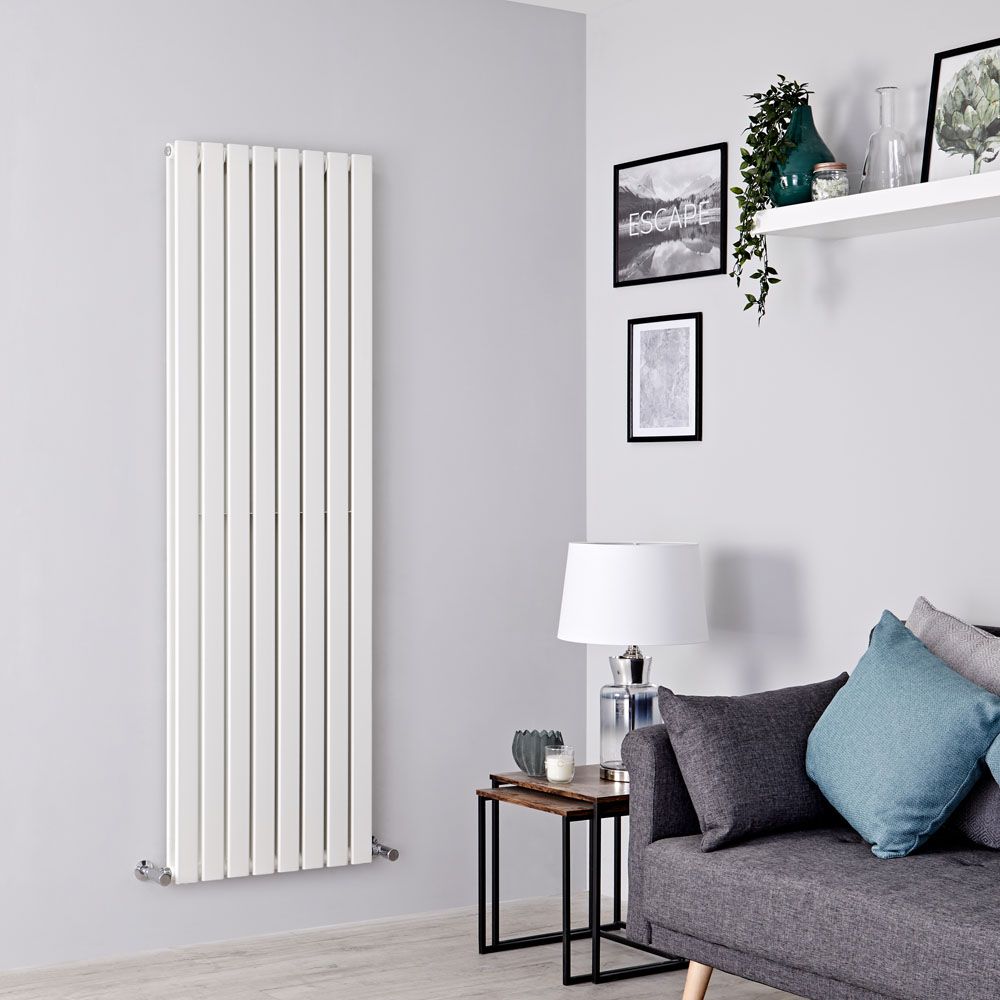

Milano Alpha - White Flat Panel Vertical Designer Radiator - 1600mm x 560mm (Double Panel)
Featuring a tall vertical design to save space, the high performing Milano Alpha 1600mm x 560mm double panel vertical designer radiator produces an impressive hourly heat output to ensure your chosen room feels warm, cosy and inviting in no time at all.
Combining stunning contemporary design with superb functionality, this radiator features a white powder coated finish that teams well with any décor and sleek flat panels for a minimal look.
A great choice for modern homes, the Alpha radiator has been crafted from premium quality steel for guaranteed durability, while the hard-wearing finish will look like new for years to come.
Alpha Designer Radiator Features:
- Dimensions: 1600mm x 560mm x 58mm
- 6679 BTU’s (1958 Watts)
- High quality white powder coated finish
- Features 8 vertical double panels
- Built to last: 1.5mm thick steel for guaranteed quality
- Tested and certified: BS EN 442 standards
- ISO 9001:2015 registered manufacturer
- CE marked
What's Included?
- Wall fixings
- Wall plugs
- Blanking and bleed plug

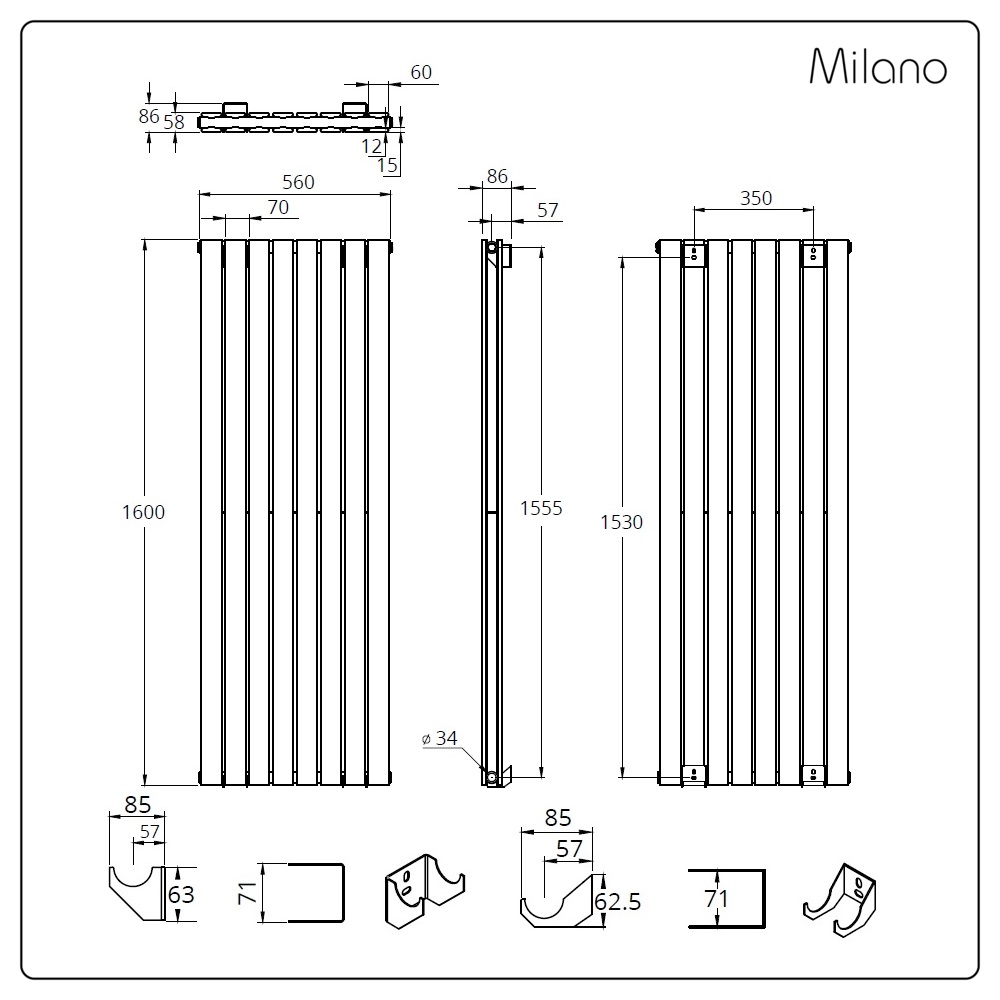

Please note: whilst we do display measurements on the line drawings, due to the manufacturing process, there can be tolerances within them. We strongly advise not to drill any fixing holes for the brackets or locate any pipework until you have received your radiator and valves are fitted.
Style | |
---|---|
Range | Alpha |
Style | Modern |
Finish | White |
RAL Code | 9016 |
Specifications | |
---|---|
Width (mm) | 560 |
Height (mm) | 1,600 |
Depth (mm) | 58 |
Projection (mm) | 88 |
Floor to Centre of Tapping (mm) | Min. 300 |
Wall to Centre Tapping (mm) | 57 |
Pipe Centres (mm) | 650 (approx.) |
Watts at Delta T30 | 716 |
Watts at Delta T50 | 1391 |
Watts at Delta T65 | 1958 |
BTU at Delta T30 | 2443 |
BTU at Delta T50 | 4747 |
BTU at Delta T65 | 6679 |
Inlet Connection | 1/2'' |
Volume (litres) | 14.5 |
Product Weight (kg) | 40.96 |
Features | |
---|---|
Material | Steel |
Installation Type | Hot Water |
Maximum Water Pressure | 10 Bar |
Guarantee | |
---|---|
Guarantee | 20 Years |
Certification | CE, EN442 |
