Milano Alpha - White Flat Panel Vertical Designer Radiator - 1600mm x 490mm (Double Panel)
SKU
DRWSP24

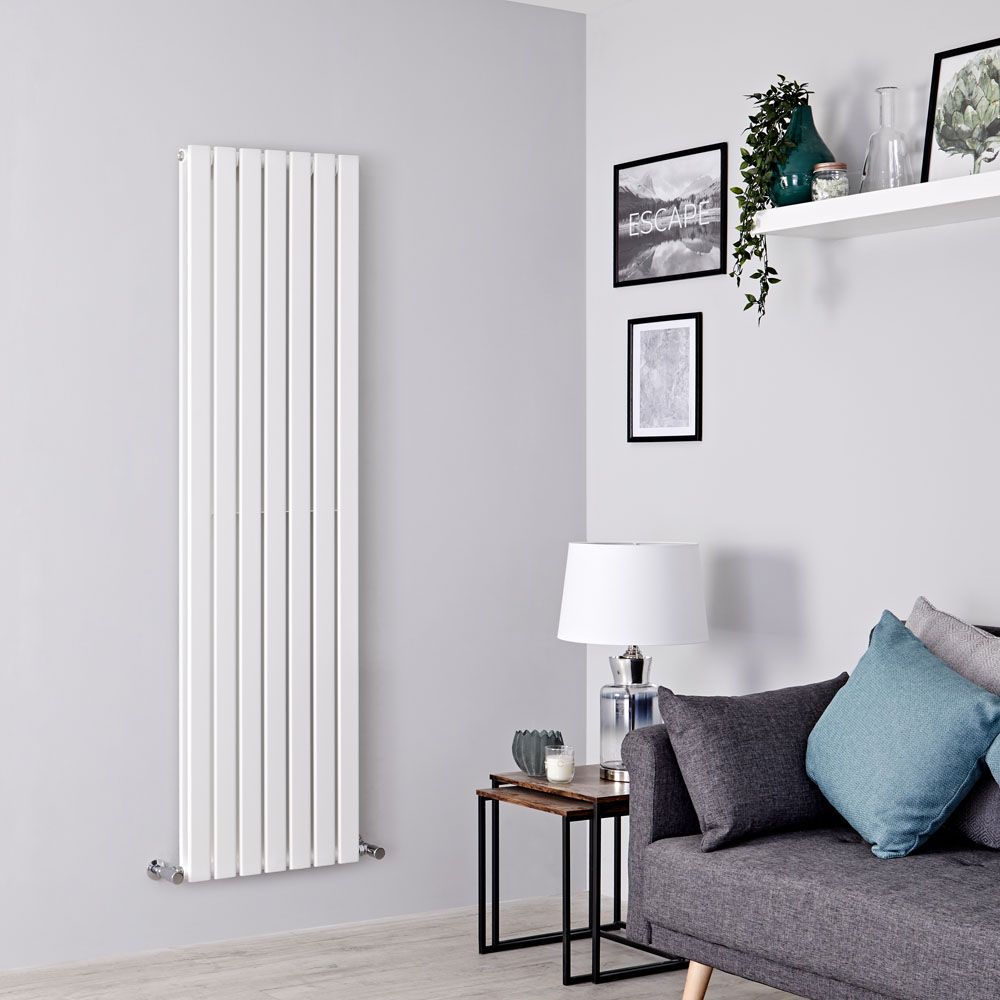

Combining contemporary design with excellent functionality, the Milano Alpha 1600mm x 490mm vertical double panel designer radiator features a white powder coated finish that teams well with any décor and sleek flat panels for a minimal look.
The perfect choice for modern homes, this designer radiator will bring sophisticated style to your bathroom, kitchen, living room or bedroom. The premium quality steel construction combined with the durable white finish gives you a radiator that will perform and look like new for years to come.
Featuring a tall vertical design to maximise space, the Alpha radiator produces a fantastic hourly heat output to ensure your chosen room feels warm, cosy and inviting in no time at all.
Alpha Designer Radiator Features:
- Dimensions: 1600mm x 490mm x 60mm
- 4154 BTUs (1217 Watts)
- High quality white powder coated finish
- Features 7 vertical double panels
- Built to last: 1.5mm thick steel for guaranteed quality
- Tested and certified: BS EN 442 standards
- ISO 9001:2015 registered manufacturer
- CE marked
What's Included?
- Wall fixings
- Wall plugs
- Blanking and bleed plug

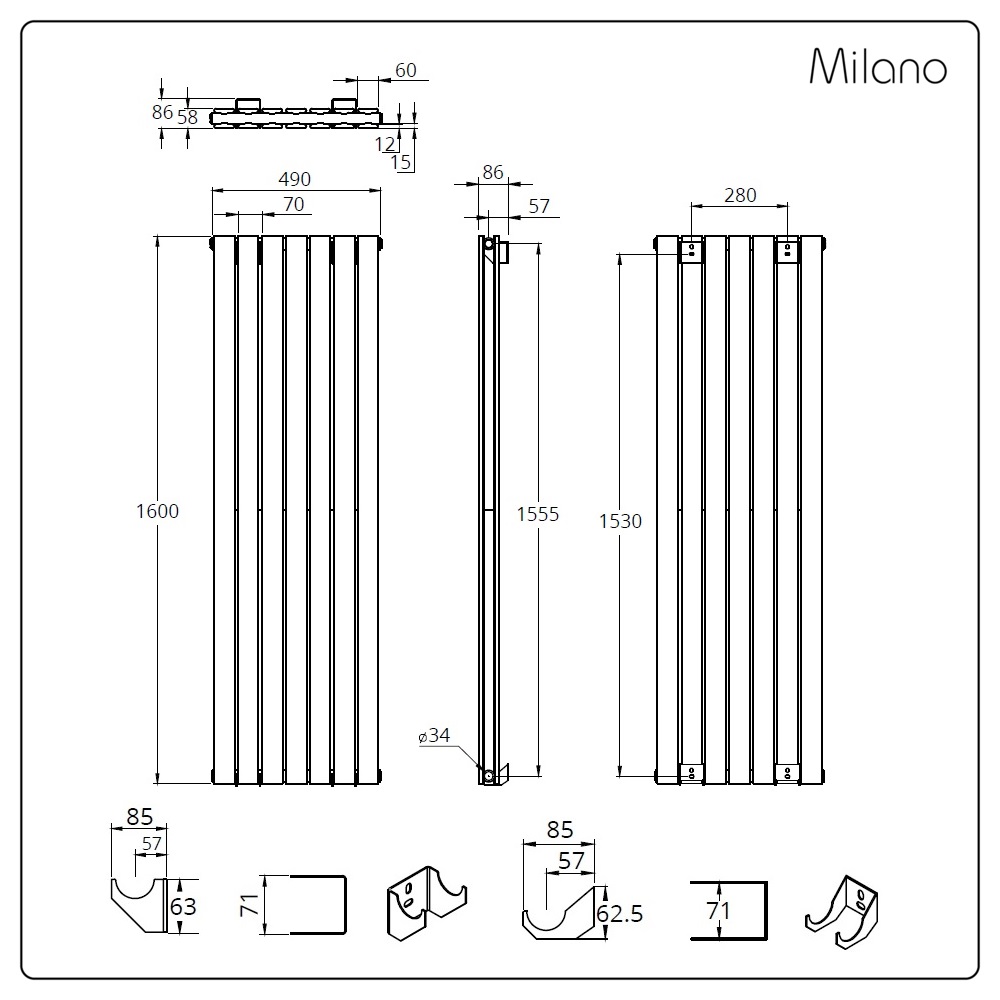

Please note: whilst we do display measurements on the line drawings, due to the manufacturing process, there can be tolerances within them. We strongly advise not to drill any fixing holes for the brackets or locate any pipework until you have received your radiator and valves are fitted.
Valves not included - Which Valves do I need?
| Style | |
|---|---|
| Range | Alpha |
| Style | Modern |
| Finish | White |
| RAL Code A colour matching system used to accurately match colours for paints, finishes, and coatings. Each RAL code represents a specific shade, ensuring consistency across products.
| 9016 |
| Specifications | |
|---|---|
| Width (mm) | 490 |
| Height (mm) | 1,600 |
| Depth (mm) | 58 |
| Projection (mm) | 88 |
| Floor to Centre of Tapping (mm) An important measurement used for radiators and towel rails, indicating the distance from the floor to the centre of the pipe connections.
| Min. 300 |
| Wall to Centre Tapping (mm) Wall to centre tapping refers to the distance between the wall to the pipe inlets at the point they enter the radiator valves. To get this measurement, you will need to measure from the centre of the pipe inlet to the wall.
| 57 |
| Pipe Centres (mm) Pipe centres refers to the distance needed between the two central heating pipes that connect to the valves - this is an approximate measurement and can differ slightly depending on the valves used.
| 580 (approx.) |
| Watts at Delta T30 | 627 |
| Watts at Delta T50 | 1217 |
| BTU at Delta T30 | 2138 |
| BTU at Delta T50 | 4154 |
| Inlet Connection | 1/2'' |
| Volume (litres) | 12.7 |
| Product Weight (kg) | 35.84 |
| Features | |
|---|---|
| Material | Steel |
| Installation Type Refers to how a product is fitted or installed in your home. It could be plumbed into your central heating system, hard wired into your electrics or plugged into a standard socket. It can also be a combination of these known as dual fuel.
| Hot Water |
| Maximum Water Pressure | 10 Bar |
| Guarantee | |
|---|---|
| GuaranteeLearn More | 20 Years |
| Certification An official document that proves a product meets established standards for quality, safety, and performance, ensuring it's fit for use.
| EN442 |
