Milano Alpha - White Flat Panel Vertical Designer Radiator - 1600mm x 420mm (Single Panel)
SKU
DRWSP3
Featuring a hard-wearing white powder coated finish that teams well with any décor and sleek flat panels, the Milano Alpha 1600mm x 420mm vertical designer radiator is the perfect choice for modern homes.
Crafted from premium quality steel for guaranteed durability, the Alpha radiator will bring sophisticated style to your bathroom, kitchen, living room or bedroom and keep it luxuriously warm.
The impressive hourly heat output means your chosen room will be quickly and efficiently transformed into a space that feels cosy and welcoming.
Alpha Designer Radiator Features:
- Dimensions: 1600mm x 420mm x 47mm
- High quality white powder coated finish
- Features 6 vertical single panels
- Built to last: 1.5mm thick steel for guaranteed quality
- Tested and certified: BS EN 442 standards
- ISO 9001:2015 registered manufacturer
- CE marked
What's Included?
- Wall fixings
- Wall plugs
- Blanking and bleed plug

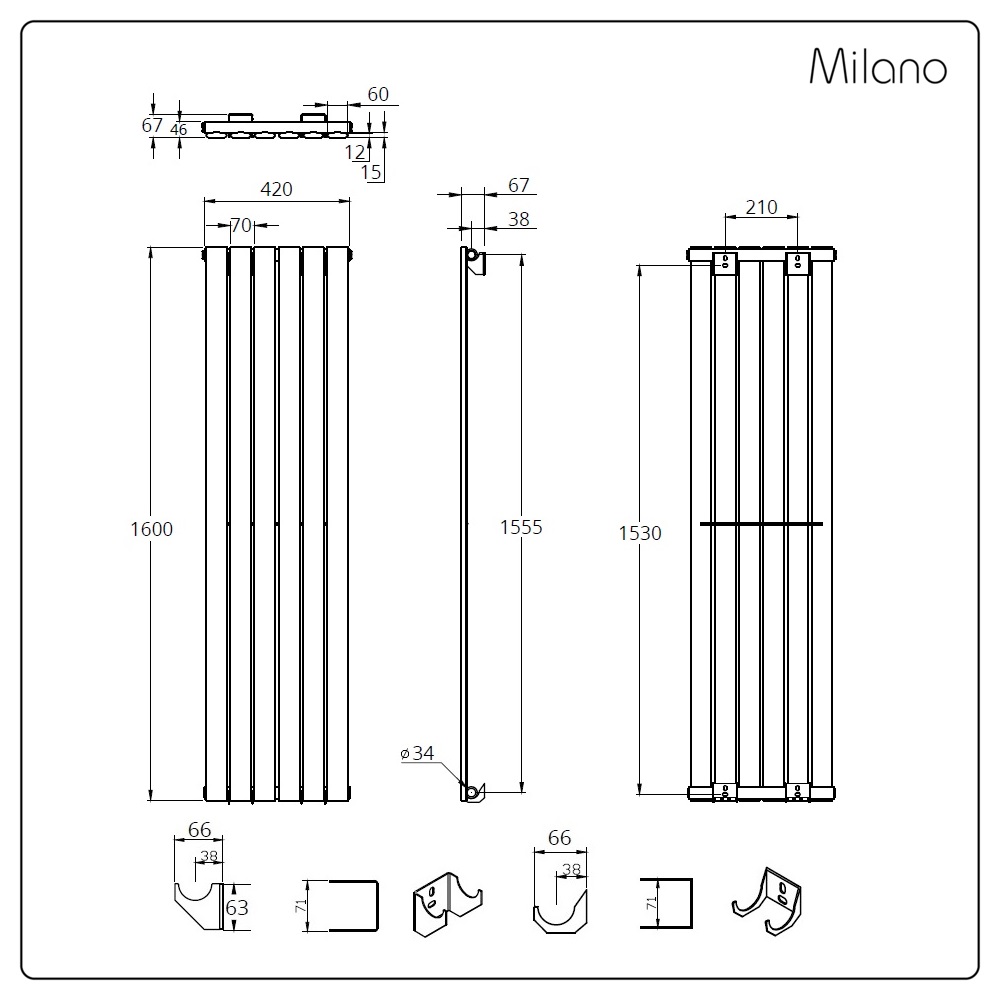

Please note: whilst we do display measurements on the line drawings, due to the manufacturing process, there can be tolerances within them. We strongly advise not to drill any fixing holes for the brackets or locate any pipework until you have received your radiator and valves are fitted.
Valves not included - Which Valves do I need?
| Style | |
|---|---|
| Range | Alpha |
| Style | Modern |
| Finish | White |
| RAL Code A colour matching system used to accurately match colours for paints, finishes, and coatings. Each RAL code represents a specific shade, ensuring consistency across products.
| 9016 |
| Specifications | |
|---|---|
| Width (mm) | 420 |
| Height (mm) | 1,600 |
| Depth (mm) | 46 |
| Projection (mm) | 67 |
| Floor to Centre of Tapping (mm) An important measurement used for radiators and towel rails, indicating the distance from the floor to the centre of the pipe connections.
| Min. 300 |
| Wall to Centre Tapping (mm) | 38 |
| Pipe Centres (mm) | 510 (approx.) |
| Watts at Delta T30 | 361 |
| Watts at Delta T50 | 695 |
| BTU at Delta T30 | 1230 |
| BTU at Delta T50 | 2373 |
| Inlet Connection This is the diameter of the pipe that connects your product to the water supply in your home.
| 1/2'' |
| Volume (litres) | 5.2 |
| Product Weight (kg) | 15.36 |
| Features | |
|---|---|
| Material | Steel |
| Installation Type Refers to how a product is fitted or installed in your home. It could be plumbed into your central heating system, hard wired into your electrics or plugged into a standard socket. It can also be a combination of these known as dual fuel.
| Hot Water |
| Maximum Water Pressure | 10 Bar |
| Guarantee | |
|---|---|
| GuaranteeLearn More | 20 Years |
| Certification An official document that proves a product meets established standards for quality, safety, and performance, ensuring it's fit for use.
| EN442 |
