Milano Alpha - White Flat Panel Vertical Designer Radiator - 1600mm x 280mm (Double Panel)
SKU
DRWSP21
The stylish Milano Alpha 1600mm x 280mm vertical radiator with double panel features a white powder coated finish that teams well with any décor and sleek flat panels for a minimal look.
The perfect choice for modern homes, this designer radiator will bring sophisticated style to your bathroom, kitchen, living room or bedroom. The premium quality steel construction combined with the durable white finish gives you a radiator that will perform and look like new for years to come.
Featuring a tall vertical design to maximise space, the Alpha radiator produces an excellent heat output to ensure your chosen room feels warm, cosy and inviting in no time at all.
Alpha Designer Radiator Features:
- Dimensions: 1600mm x 280mm x 60mm
- High quality white powder coated finish
- Features 4 vertical double panels
- Built to last: 1.5mm thick steel for guaranteed quality
- Tested and certified: BS EN 442 standards
- ISO 9001:2015 registered manufacturer
- CE marked
What's Included?
- Wall fixings
- Wall plugs
- Blanking and bleed plug

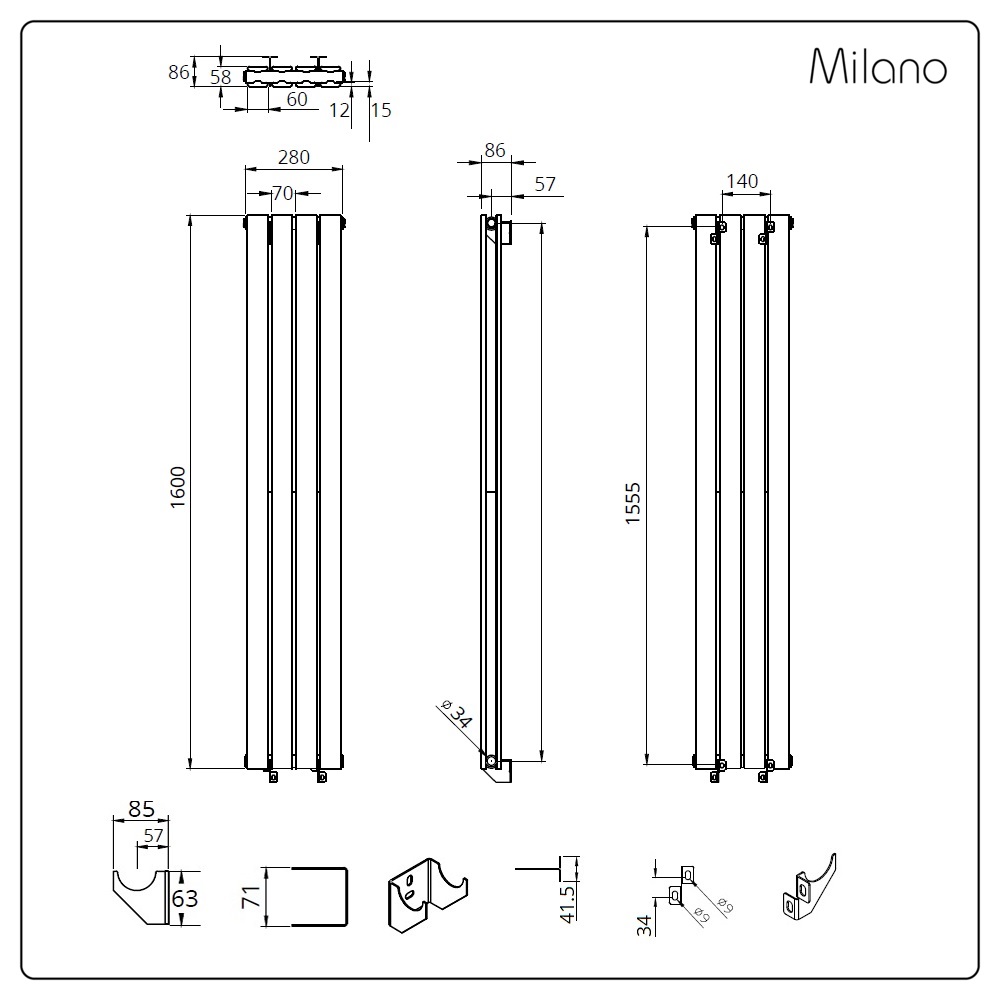

Please note: whilst we do display measurements on the line drawings, due to the manufacturing process, there can be tolerances within them. We strongly advise not to drill any fixing holes for the brackets or locate any pipework until you have received your radiator and valves are fitted.
Valves not included - Which Valves do I need?
| Style | |
|---|---|
| Range | Alpha |
| Style | Modern |
| Finish | White |
| RAL Code A colour matching system used to accurately match colours for paints, finishes, and coatings. Each RAL code represents a specific shade, ensuring consistency across products.
| 9016 |
| Specifications | |
|---|---|
| Width (mm) | 280 |
| Height (mm) | 1,600 |
| Depth (mm) | 58 |
| Projection (mm) | 88 |
| Floor to Centre of Tapping (mm) An important measurement used for radiators and towel rails, indicating the distance from the floor to the centre of the pipe connections.
| Min. 300 |
| Wall to Centre Tapping (mm) | 57 |
| Pipe Centres (mm) | 370 (approx.) |
| Watts at Delta T30 | 358 |
| Watts at Delta T50 | 696 |
| BTU at Delta T30 | 1222 |
| BTU at Delta T50 | 2373 |
| Inlet Connection This is the diameter of the pipe that connects your product to the water supply in your home.
| 1/2'' |
| Volume (litres) | 7.3 |
| Product Weight (kg) | 20.48 |
| Features | |
|---|---|
| Material | Steel |
| Installation Type Refers to how a product is fitted or installed in your home. It could be plumbed into your central heating system, hard wired into your electrics or plugged into a standard socket. It can also be a combination of these known as dual fuel.
| Hot Water |
| Maximum Water Pressure | 10 Bar |
| Guarantee | |
|---|---|
| GuaranteeLearn More | 20 Years |
| Certification An official document that proves a product meets established standards for quality, safety, and performance, ensuring it's fit for use.
| EN442 |
